Small size Wifi 5g 5.2ghz signal 3.5dbm outdoors jamming drone four leaf clover antenna

Small size Wifi 5g 5.2ghz signal 3.5dbm outdoors jamming drone four leaf clover antenna
Small size Wifi 5g 5.2ghz signal 3.5dbm outdoors jamming drone four leaf clover antenna
Small size Wifi 5g 5.2ghz signal 3.5dbm outdoors jamming drone four leaf clover antenna Small size Wifi 5g 5.2ghz signal 3.5dbm outdoors jamming drone four leaf clover antenna Small size Wifi 5g 5.2ghz signal 3.5dbm outdoors jamming drone four leaf clover antenna Small size Wifi 5g 5.2ghz signal 3.5dbm outdoors jamming drone four leaf clover antenna
Βασικές πληροφορίες
Τόπος καταγωγής: Κίνα
Μάρκα: TeXin
Πιστοποίηση: SGS,ISO9001
Ποσότητα παραγγελίας min: 1
Τιμή: Διαπραγματεύσιμα
Συσκευασία λεπτομέρειες: Ανθεκτική περίπτωση ή κιβώτιο
Χρόνος παράδοσης: 3-5 ημέρες
Όροι πληρωμής: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Δυνατότητα προσφοράς: 50,00PCS/Month
Καλύτερη τιμή Επικοινωνήστε
Λεπτομερής ενημέρωση
Συχνότητα: 5100-5300mhz (προσαρμοσμένο) Κέρδος: 3±0,5dBi
VSWR: ≤1,5 Πόλωση: Κατακόρυφος
Αντίσταση εισόδου: 50Ω Ισχύς εισόδου: 50W
Θερμοκρασία λειτουργίας: 40-80 º Μέγεθος εξωτερικού κελύφους: 20*100mm
Βάρος: 60G Συνδετήρας: N Σύνδεσμος
Υλικό κελύφους: Χαλκός
Επισημαίνω:

small wifi 5g high gain antenna

,

outdoor drone jamming antenna

,

5.2ghz four leaf clover antenna

Περιγραφή προϊόντων

Small Size WiFi 5G 5.2GHz Signal 3.5dBm Outdoors Jamming Drone Four Leaf Clover Antenna
The 5GHz (5100-5300MHz) clover-shaped WiFi antenna features ample bandwidth and low interference, enabling it to jam the signals of various image transmission drones, including FPV and UAV drones, even in complex environments. The clover-shaped antenna consists of four mutually perpendicular radiating elements. This structure allows the antenna to generate rotating circularly polarized waves, providing omnidirectional radiation and achieving 360° coverage without dead zones in the horizontal direction.
Dimensions: 100*99mm
Weight: 60g
Technical Specifications
No. Item Data Unit
1 Frequency 5100-5300 MHz
2 Range 360°
3 Current 6.5 A
4 Output 50 W
5 Gain 3±0.5 dB
6 Input Connector Type N -
7 Input Stability 0-10 dB
8 Cable Type RG316 -
9 Output Connector VSWR ≤1.50 (No power and VNA test) -
10 Outer Shell Size 100*99 mm
11 Material Copper -
12 Weight 54 g
13 Work Temperature -40~+65 ℃
14 Connector N-male -
15 Vibration Requirement Car load OK -
Product Images

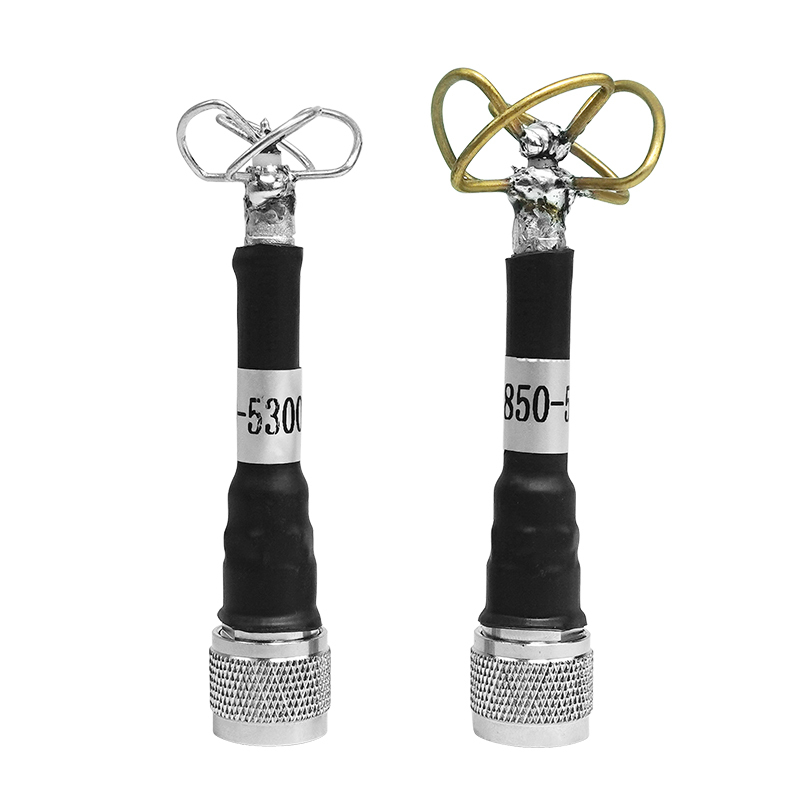

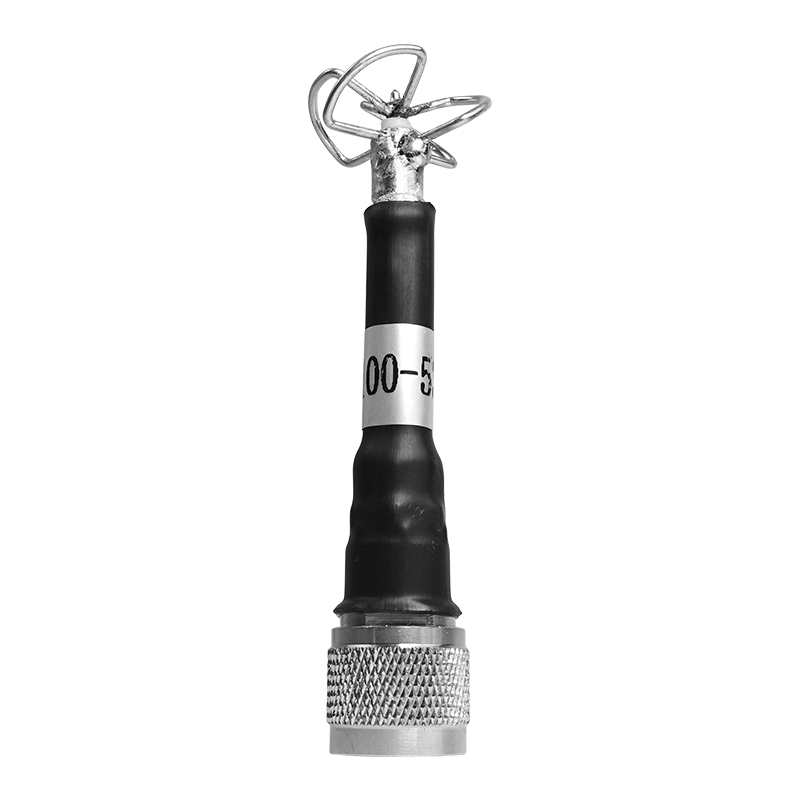

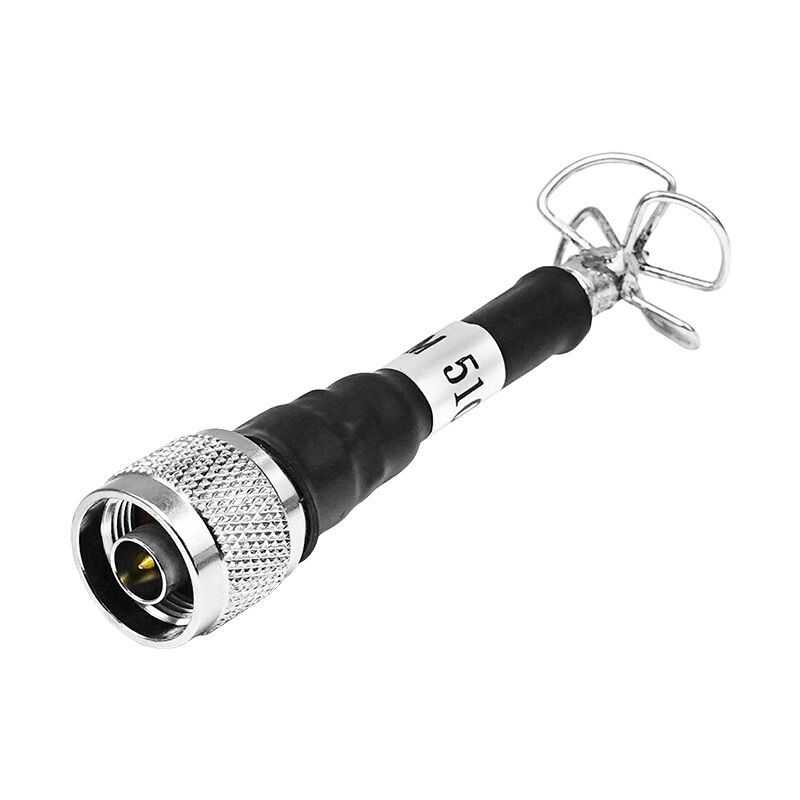

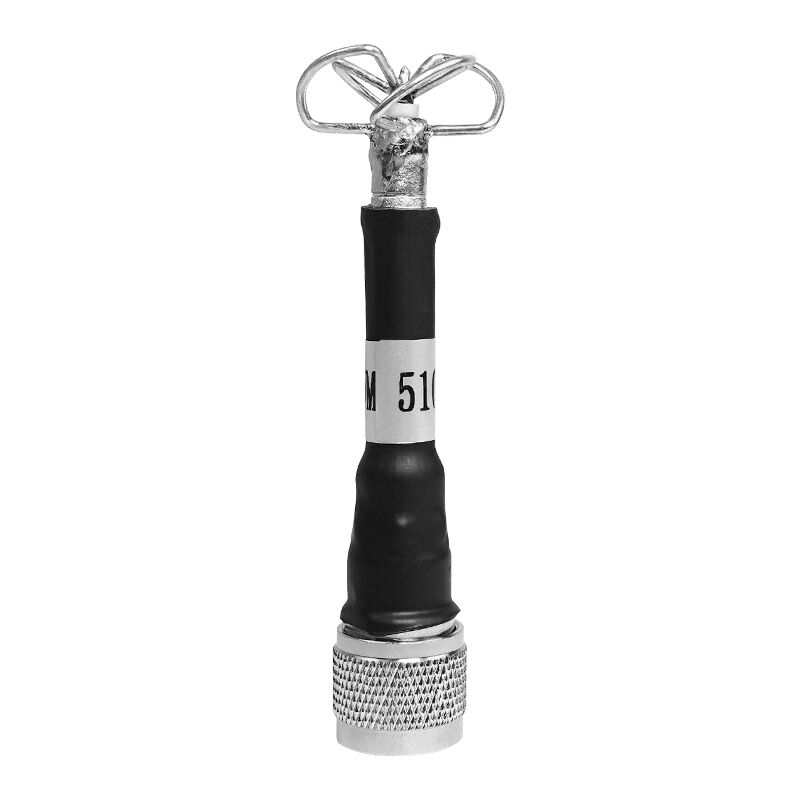

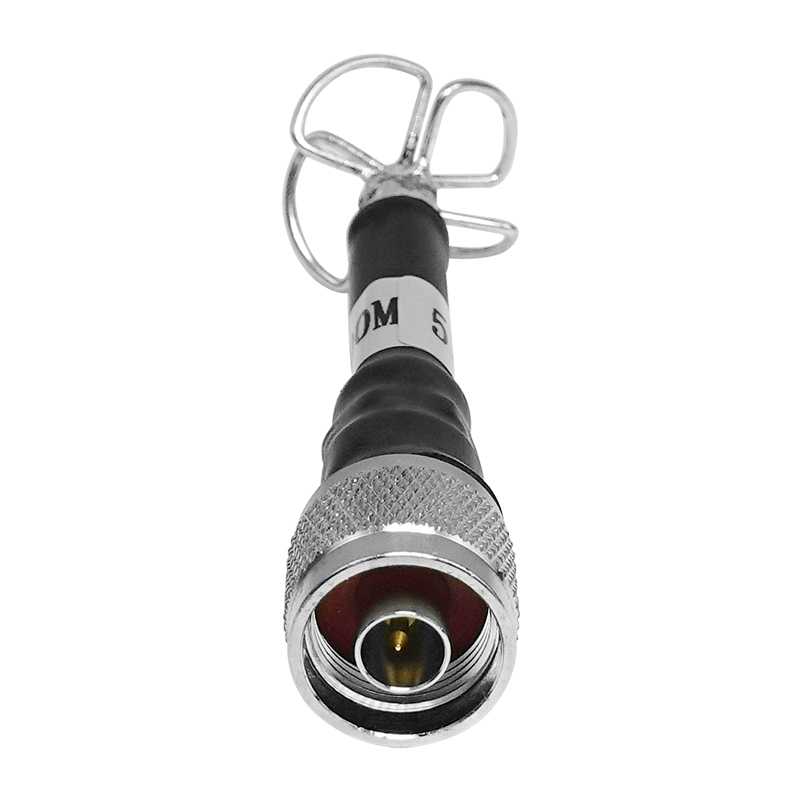

Small size Wifi 5g 5.2ghz signal 3.5dbm outdoors jamming drone four leaf clover antenna 0 Small size Wifi 5g 5.2ghz signal 3.5dbm outdoors jamming drone four leaf clover antenna 1
Product Features
  • Wideband, precise coverage, and strong adaptability: Focusing on the 300-2000MHz core frequency band, it's compatible with multiple brands and types of drones without additional debugging.
  • High power and high gain for outstanding transmission capabilities: 50W high power output paired with 47dB high gain.
  • Strong adaptability and high durability: Utilizing industrial-grade components and an anti-interference shielding design, it can withstand temperatures ranging from -20°C to 60°C and humidity levels of 5% to 95%.
  • Lightweight, easy to install, and highly practical: The module weighs less than 150g and is compact.
Product Application
Small size Wifi 5g 5.2ghz signal 3.5dbm outdoors jamming drone four leaf clover antenna 2
Frequently Asked Questions
  • Are you a manufacturer?
    • Yes, our factory is located in Longgang District, Shenzhen, welcome to visit us here.
  • MOQ?
    • 1 to 100pcs
  • Payment term?
    • T/T, Alibaba Trade Assurance (Visa, Master card, E-checking, etc), WestUnion, Paypal, etc.
  • How to proceed with an order?
    • A. Let us know your requirements and product application through inquiry on Alibaba website
    B. We quote according to your specification
    C. Customers agree with the quotation and make the payment
  • What to do if I receive defective products?
    • Our strict quality control will ensure a 100% pass rate. But it can be damaged in transit. Please kindly share the defective product photo or video to let us know where the problem is. We will make the compensation accordingly or send you a new electronic part or product.
Factory Pictures
Small size Wifi 5g 5.2ghz signal 3.5dbm outdoors jamming drone four leaf clover antenna 3 Small size Wifi 5g 5.2ghz signal 3.5dbm outdoors jamming drone four leaf clover antenna 4 Small size Wifi 5g 5.2ghz signal 3.5dbm outdoors jamming drone four leaf clover antenna 5
